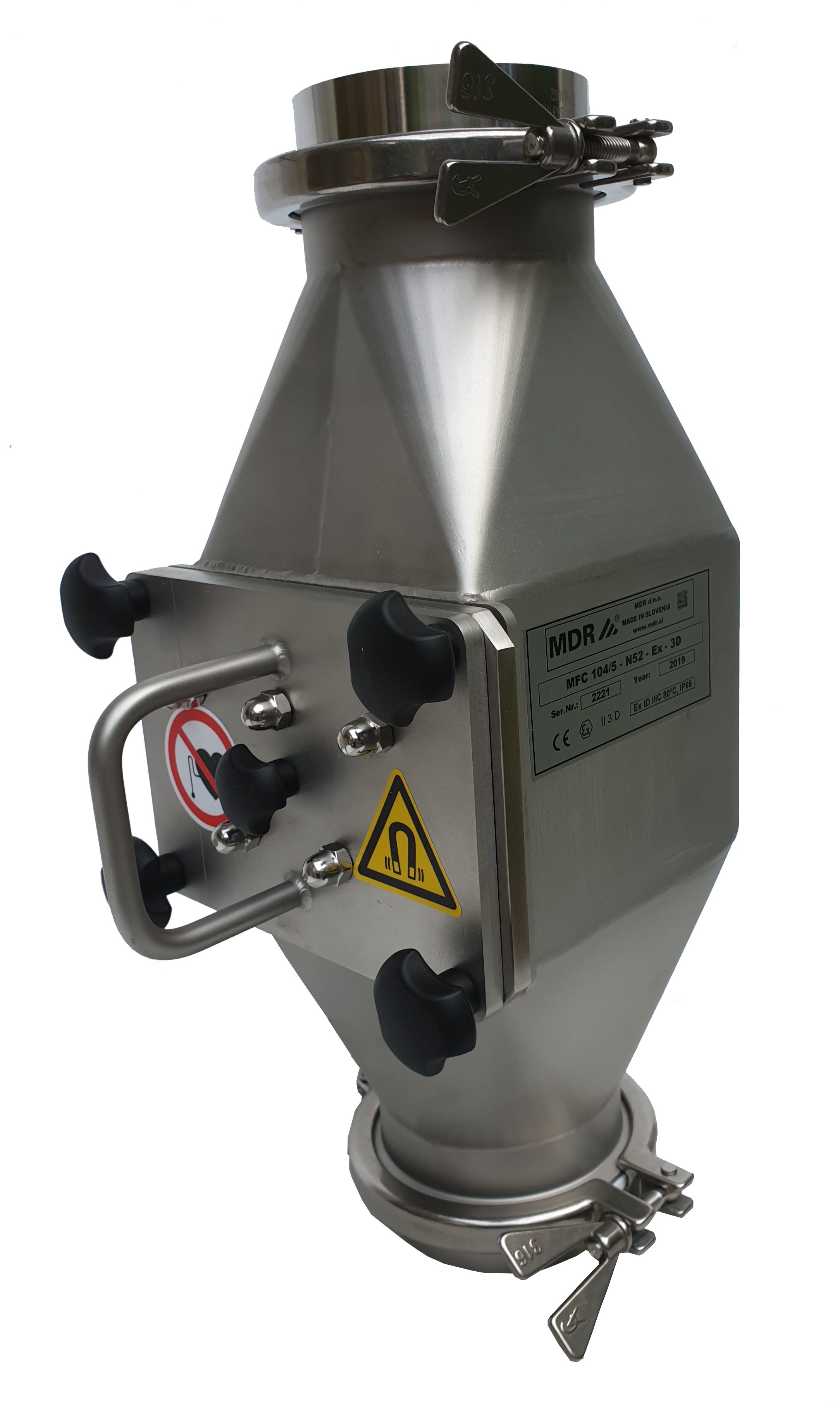

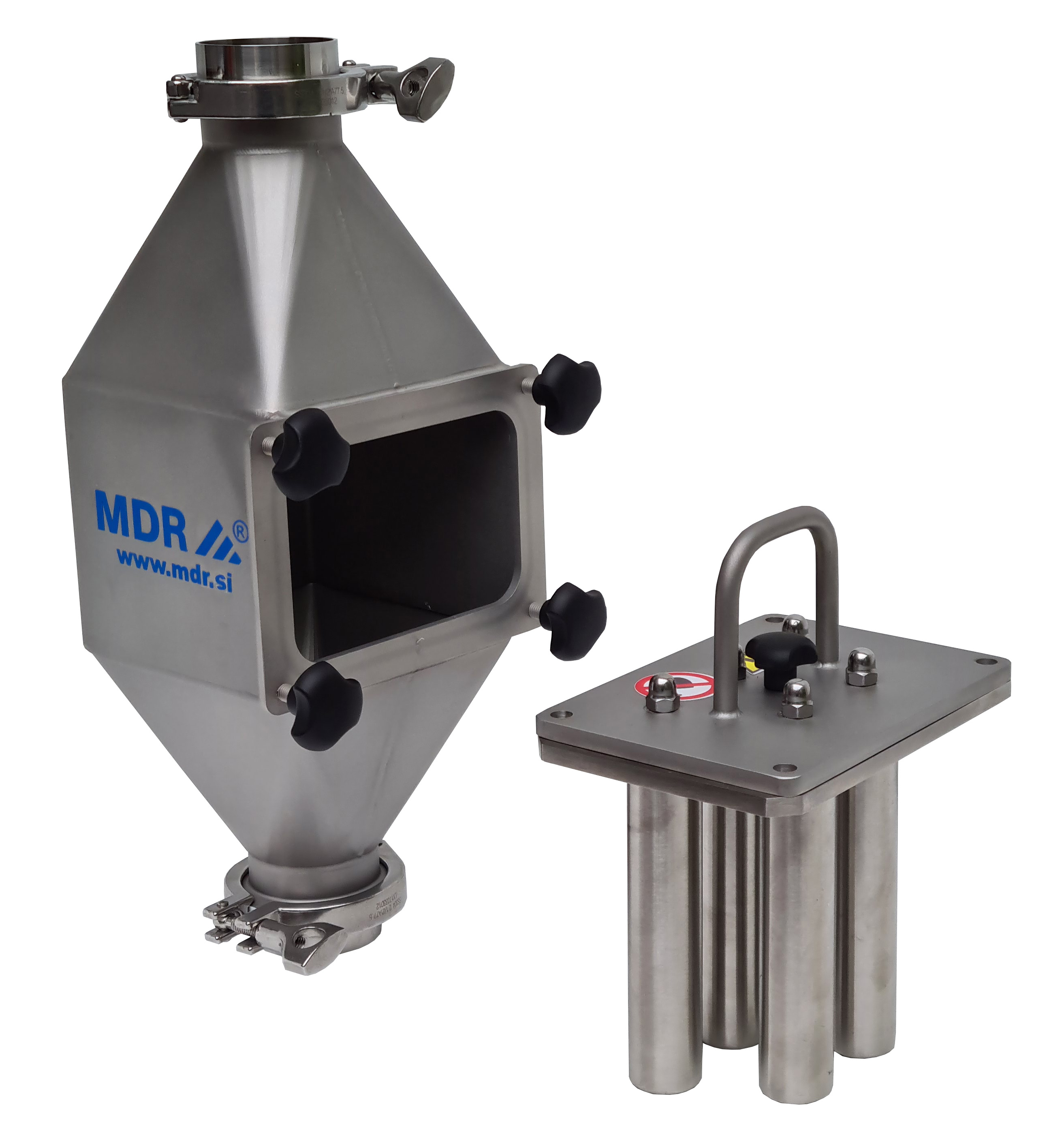

Magnetic filter MFV

  • Very effective separation of small ferromagnetic particles and oxides larger than 10 μm from free-falling dry materials or from the air transport
  • Strong neodymium NdFeB magnets type N52 (14.800 Gauss)

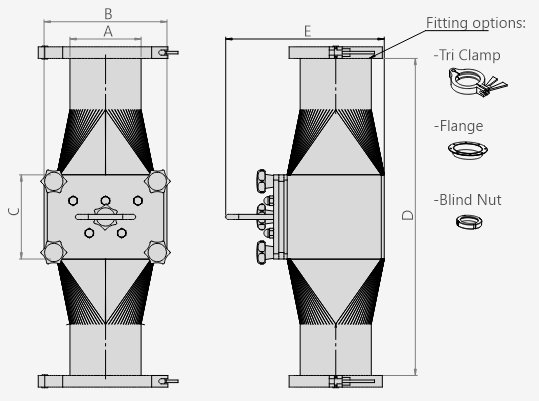

  • Dimensions and design of magnetic grid can be adjusted to client's needs
  • Easy cleaning
  • Maintenance-free
  • Inexpensive to acquire and operate
  • Easy to install

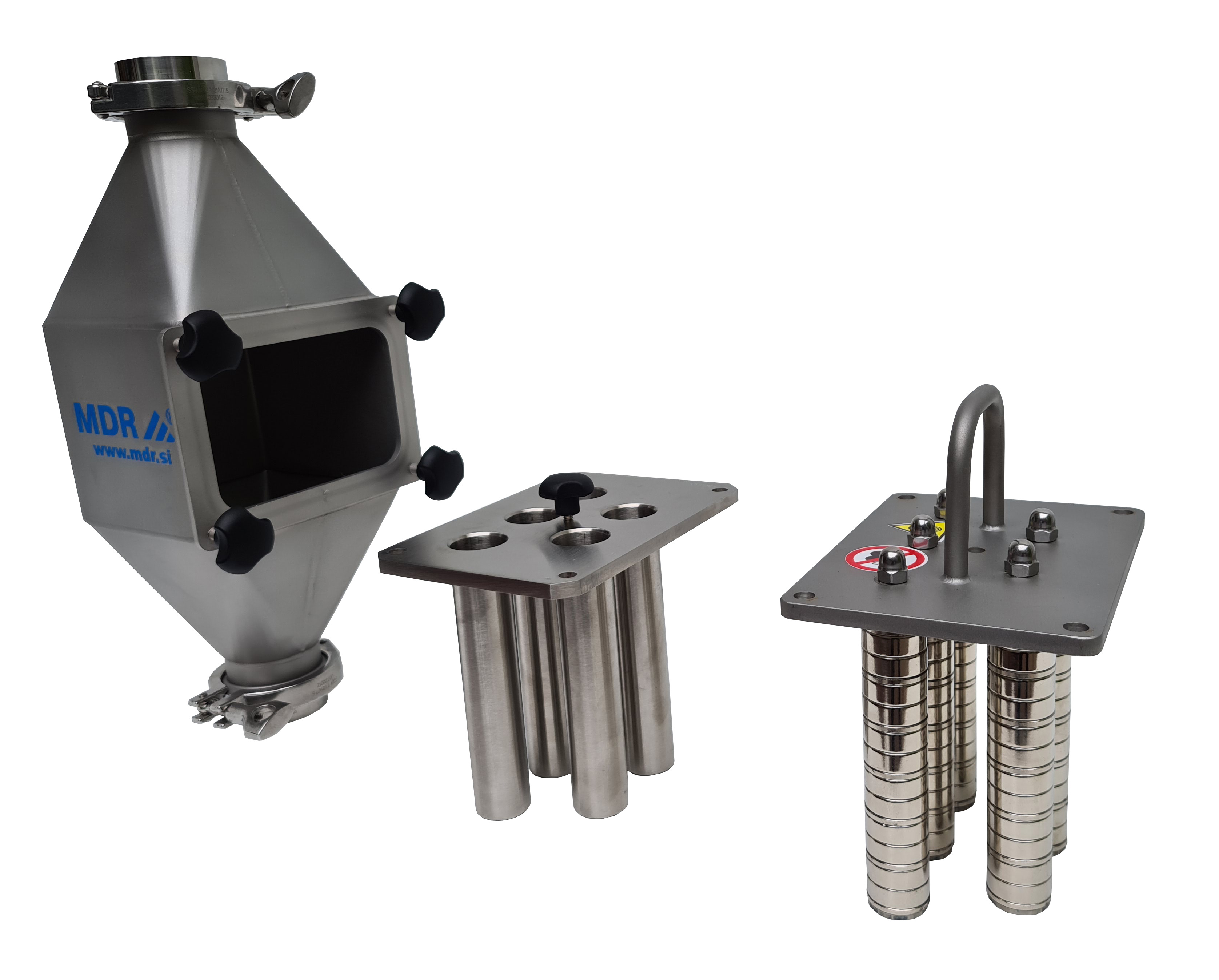

During cleaning, the magnetic elements are pulled out of protective pipes, so that the ferromagnetic material can fall into a prepared container or funnel.
